| Manufacturer: | Alphil, |
| Model: | PRESS SPOT, PROJECTION Combo. |
| Primary Volts. | 460/1/60, |
| KVA: | 200, |
| Secondary Volts. Min/Max: | 6.76-13.2 V, |
| Platens: | 8-1/2″ X 6″ |
| Throat Dimensions: | 20” TO CENTER OF PLATENS, 30” WITH ELECTRODES. |
| Pressure Ratio: | 28/1. |
| Cylinder Type: | PISTON, 6” DIAMETER, 2,300 LBS. ELECT FORCE. |
| Stroke: | 3″. |

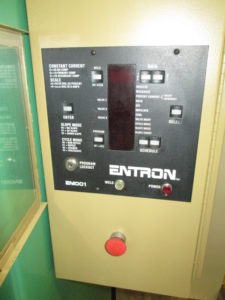

| Control: | ENTRON MODEL: EN-1001-1200. |
| Contactors: | SCR, WATER COOLED, 1200 AMPS, 1800 PIV. |
| Machine Dimensions: | 84” H X 40” W X 62” D. |
| Machine Weight: | 4,000 LBS. |
| Comments: Excellent condition, combination spot/projection, 8.5” X 6″ T-slot platens, 3” spot welding horns X 1-1/2” tip holders, 2-stage foot switch, water manifolds, and Entron EN-1001 control. 30 day return option. Inspect it under power in our plant. Ready to ship.  |
|
200 KVA ALPHIL Spot Projection
