Manufacturer	Sciaky TJ Snow
Type	PMM2TCIC-125-136, Seam Welder, Circumferential.
Primary Volts.	460/3/60.
KVA	125
Welding Capacity	Aluminum: 0.020”- 0.064”. Stainless: 0.020”-0.064”. Mild Steel: 0.020”-0.125”.
Secondary Volts. Min/Max	1.58V - 312.
Peak Secondary Amps.	60,000 Amps at 20 Cycle Pulse Time.
Throat Dimensions	10” X 36”.
Pressure Ratio	50/1. Electrode Force: 4,000 lbs.
Cylinder Type	Retractable diaphragm.
Stroke	5".
Control	Intertron MC301
Contactors	SCR, WATER COOLED, 1700 AMPS 2600 PIV.
Machine Dimensions	108" L x 60" W x 119" H
Machine Weight	15,000 Lbs..

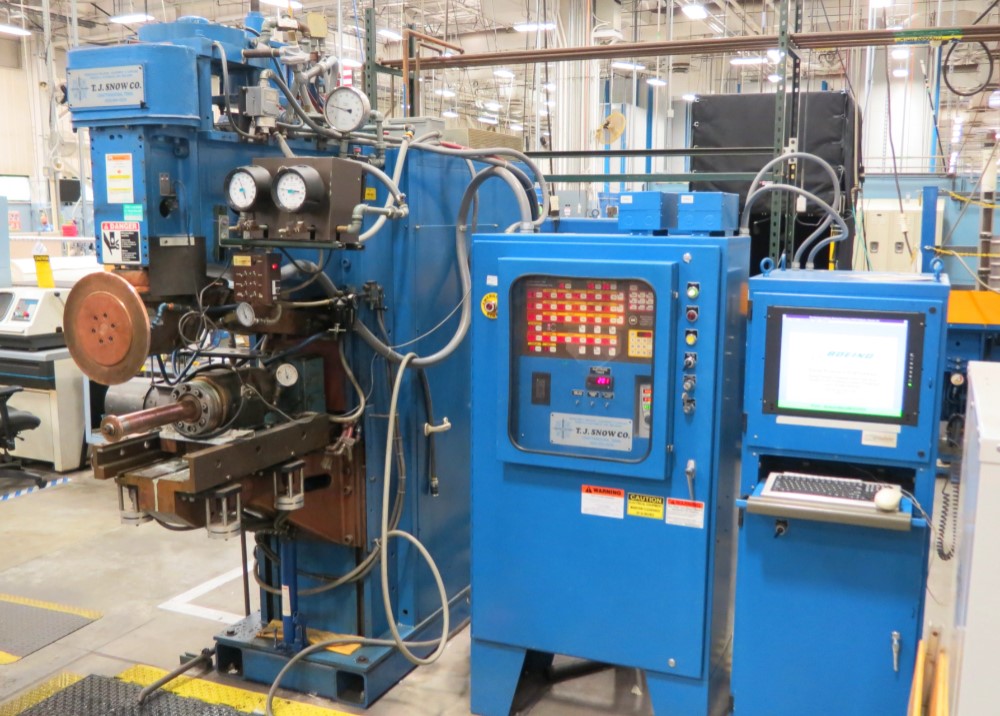

Comments: Circumferential 3 Phase Sciaky Seam welder with diaphragm head. TJ Snow ReManufacture Date: 1999. Intertron MC301 Controls. Available in “As is” condition, or fully rebuilt.
