SPECIFICATIONS

Manufacturer	Sciaky TJ Snow
Type	PMM2TC, Seam Welder, Circumferential.
Primary Volts.	460/3/60.
KVA	100
Welding Capacity	Aluminum: 0.020"- 0.064". Stainless: 0.020"-0.064". Mild Steel: 0.020"-0.125".
Secondary Volts. Min/Max	1.58V - 3.2V.
Peak Secondary Amps.	60,000 Amps at 20 Cycle Pulse Time.
Throat Dimensions	10" X 36".
Pressure Ratio	50/1. Electrode Force: 4,000 lbs.
Cylinder Type	Retractable diaphragm.
Stroke	5".
Control	Intertron MC302A
Contactors	SCR, WATER COOLED, 1700 AMPS 2600 PIV.
Machine Dimensions	140" L x 65" W x 106" H
Machine Weight	18,000 Lbs..

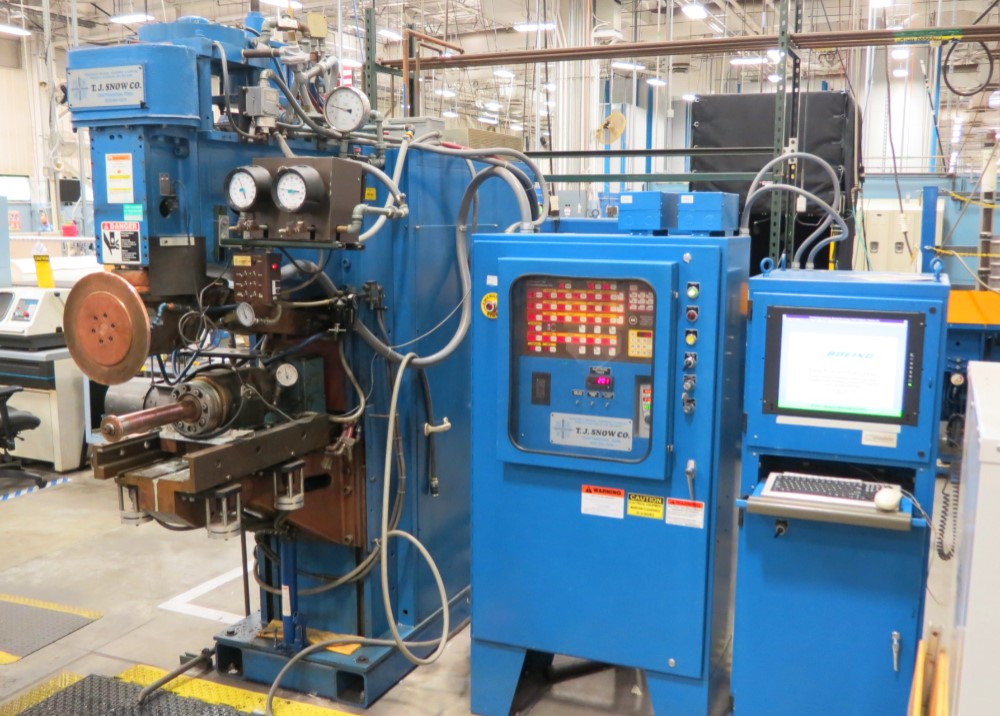

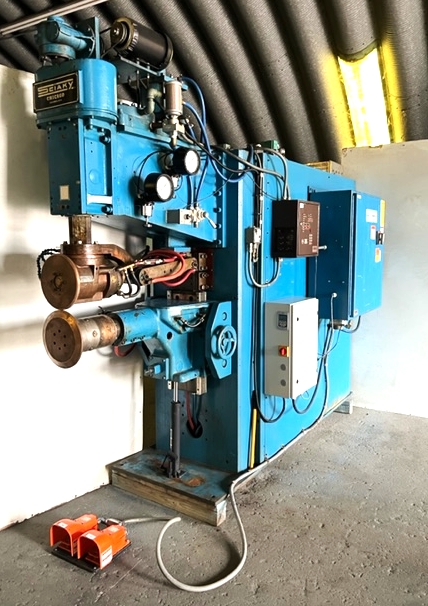

Comments: Circumferential 3 Phase Sciaky Seam welder with diaphragm head. TJ Snow ReManufacture Date: 1999. Intertron MC302A Controls installed in 2015. Available in "As is" condition, or fully rebuilt. It maybe inspected under power in our Fort Lauderdale, Florida facility.
