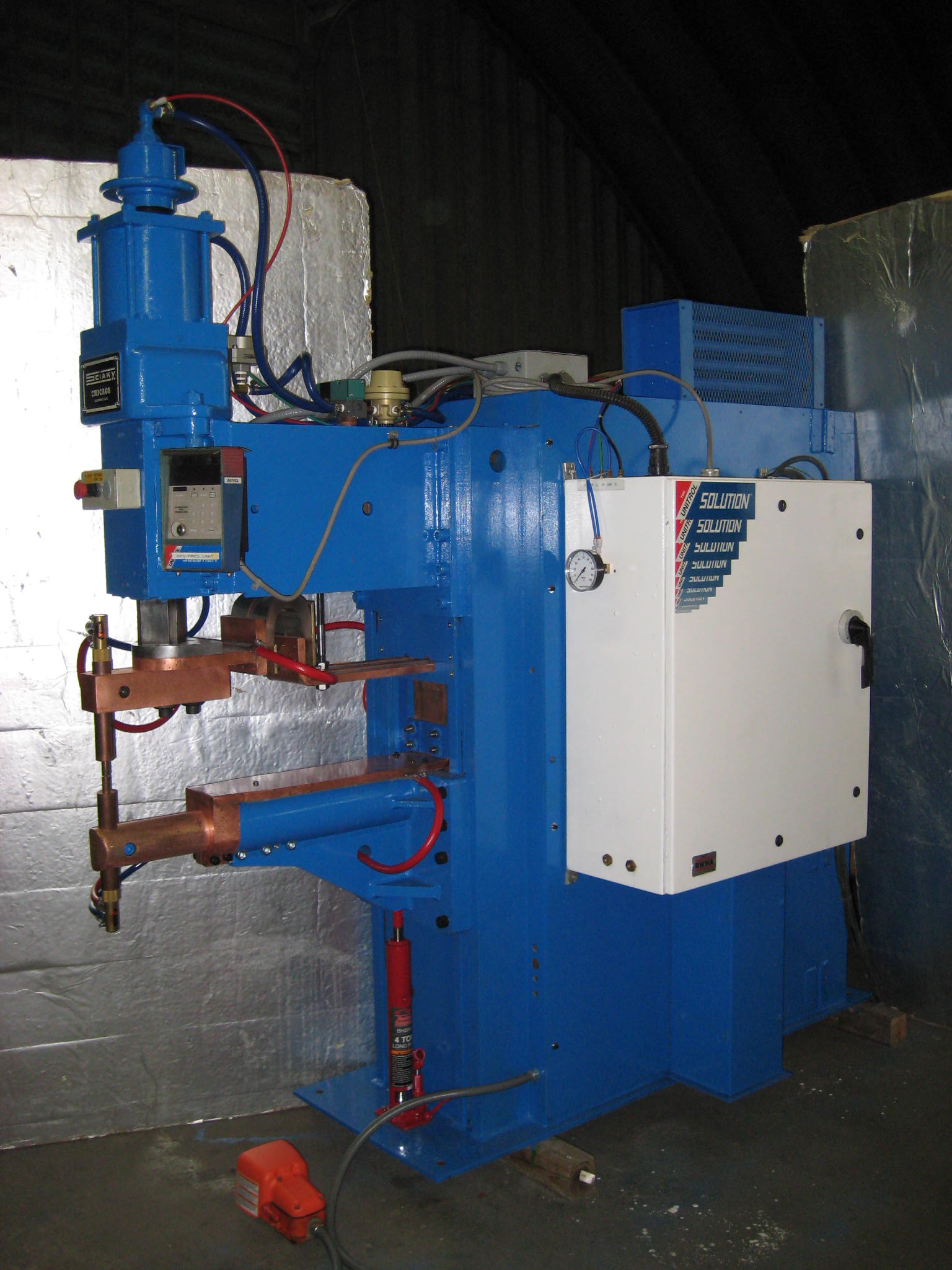

Manufacturer:	Sciaky,
Type:	SPTQ2-40-150-30, Press type spot.
Primary Volts:	230-460/3/60.
KVA:	150 KVA,
Welding Capacity:	Aluminum: 0.032"- 0.125", Stainless: 0.032"-0.125", Mild Steel: 0.032"-0.187",
Secondary Volts Max:	5.8V,
Peak Secondary Amps:	90,000 Amps at 5 cycle pulse time.
Throat Dimensions:	10" X 30".
Pressure Ratio:	50/1,
Cylinder Type:	Retractable piston, �8" diameter,
Stroke:	3",
Control:	Unitrol Solution 3 phase
Contactors	SCR, WATER COOLED, 1200 AMPS 2600 PIV
Machine Dimensions	95" H X 44" W X 87" D
Machine Weight	10,000 Lbs.

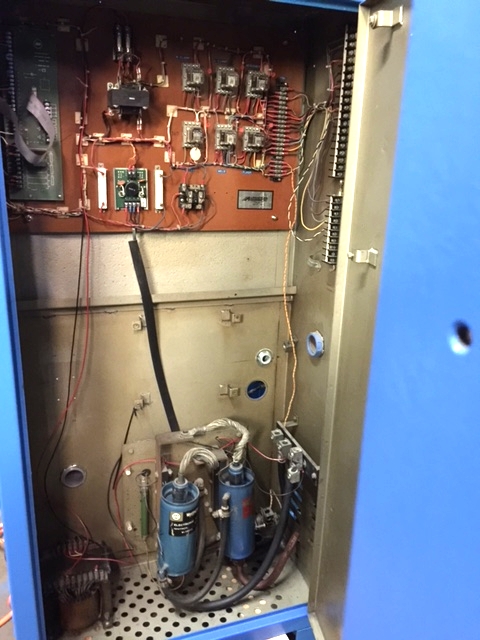

Comments:�Perfect Sciaky �spot welder for a job shop, or an OEM with a wide range of spot welding projects. �Equipped with Unitrol Solution 9380 control, water cooled SCR contactors, and 400A/600V Built-In Circuit Breaker. Inlet and outlet water manifolds with sight flow indicators. �Inspect it under power in our plant. Ready to ship!
